808nm diode laser hair removal machine

Quick Details

Type:

Laser

Q-Switch:

No

Style:

Portable

Certification:

CE, IOS

Brand Name:

GS

Model Number:

OL-HR-Azalea

Feature:

Hair Removal, Blood Vessels Removal, Anti-Puffiness, Pore Remover, Face Lift, Pigment Removal, Skin Tightening, Skin Rejuvenation, Dark Circles, Wrinkle Remover, Anti-Hair Removal

Application:

For Commercial & Home Use

Energy:

0~120J/cm2

Wavelength:

808nm 600w

Pulse width:

0ms~600ms

Frequency:

1Hz~10Hz

Treatment temp.:

-5℃--5℃ by 4D cooling Sapphire

Spot size:

11x17mm

Screen language:

English or Spanish or others

Touch screen:

10.4' color touch screen Dwin

Power supply:

220VAC / 50-60Hz or 110v / 50-60Hz

Dimension:

50x40x56cm

1.All the laser hair removal machines are with the same principal with a process of selective photothermolysis in which energy in the form of optical wavelengths is delivered into the hair shaft and pigmented follicular epithelium.

2.Then the light is primarily absorbed by the endogenouschromophore melanin and results in a repaid rise in temperature and subsequent heat transfer to adjacent tissue,causing local thermal necrosis of follicles' regenerative structures.

3.To achieve permanent hair removal,the laser system must be able to effectively treat the different hair type and colors as well as the various skin types while providing maximum skin protection.The laser's wavelength,pulse duration and spot size determine the effectiveness of treatment and also influnce the depth of prnetration and treatment speed.

2.Technical Advantages:

1.Advanced technical

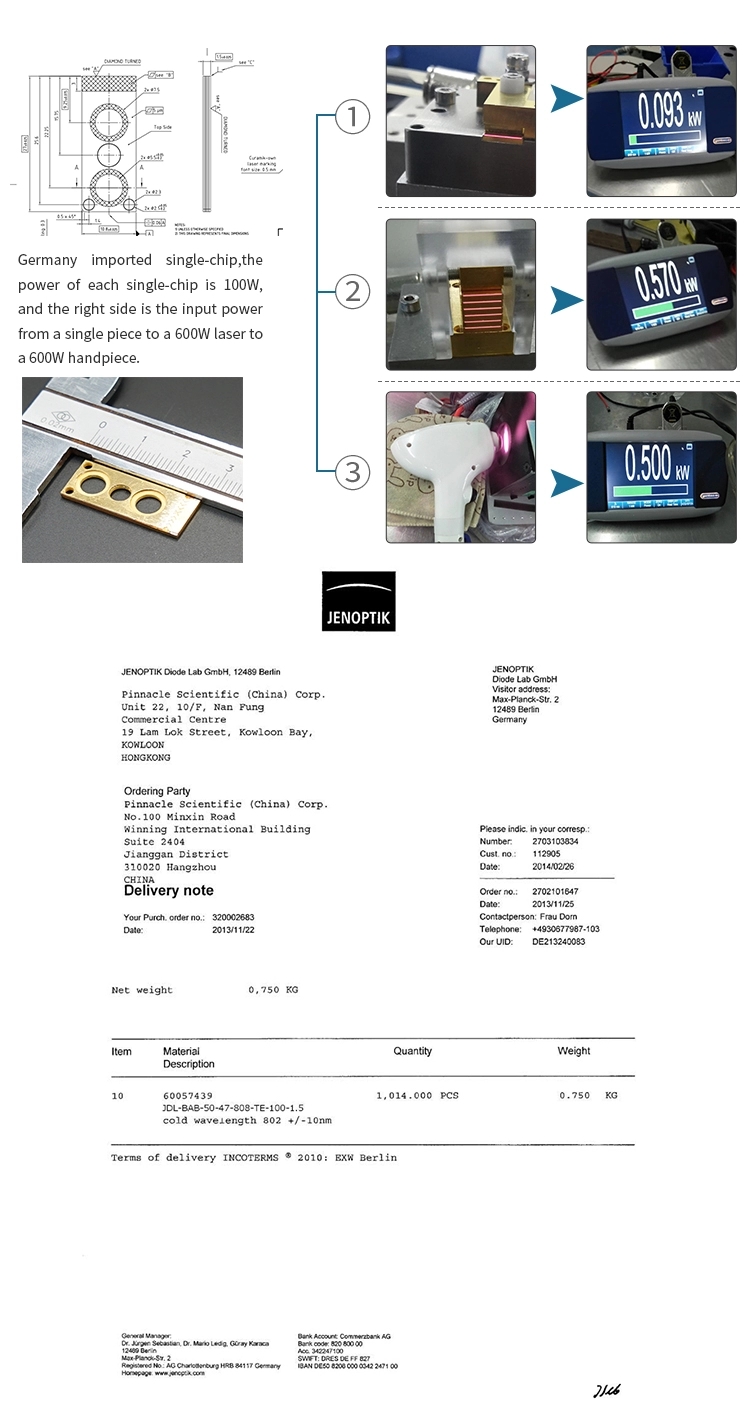

2.Germany imported diode bar

3.High skilled and experience technicians

4.Professional cleaning room for mounting and assembling

5.Experted machine production line

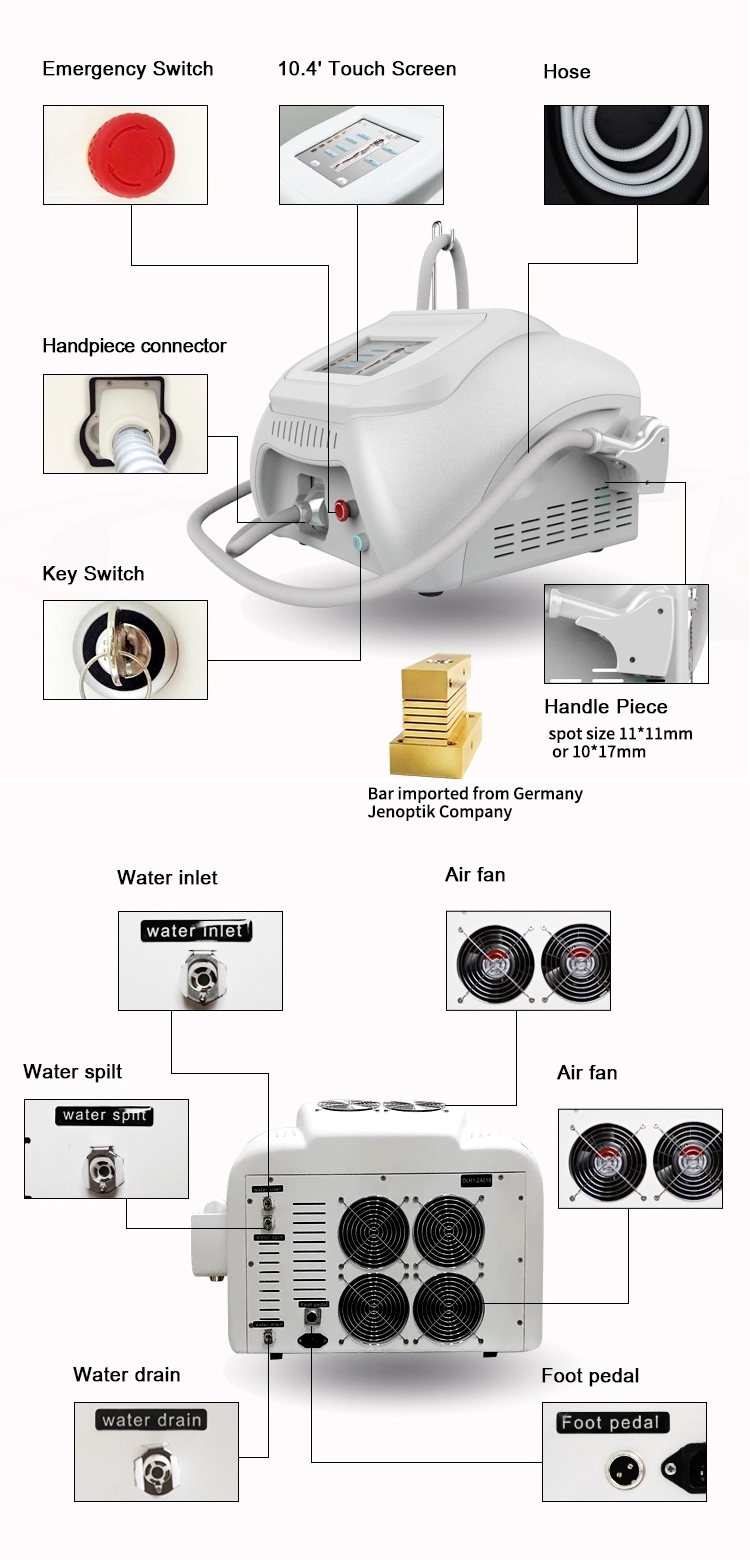

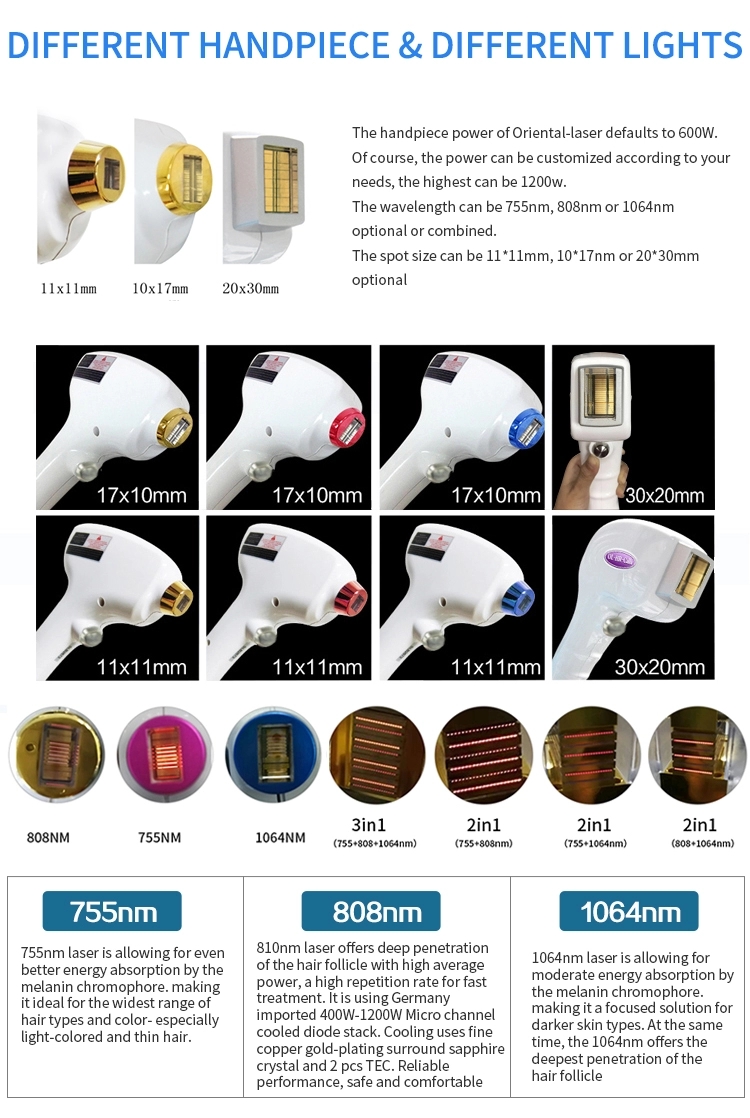

3.Laser Handpiece Details

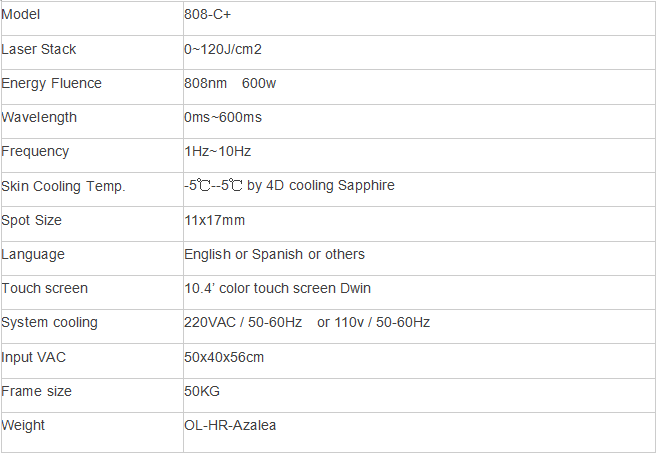

4.Technical Parameters
